Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SOUNDKING
  • Model Number: DM20
  • MIC Input: 12channels,XLRs,4 Combi
  • LINE Input: 12channels,XLRs,4 Combi
  • Smart Outputs: 8 assignable balanced XLR
  • Internal Busses: 16
  • Power: 90-240V ~ 50/60Hz power supply 12VDC output
  • Dimension (WxHxD): 350x380x150mm
  • Screen: 7" high definition touch screen
  • Faders: 9*motorized 100mm faders
  • Sample Frequency: 48 KHz
  • AD/DA: 192KHz, 24-bit

Packaging & Delivery

Packaging Details carton package with protecting corners. And we can follow customers individual package design
Delivery Time Shipped in 45 days after payment
Product Description



SK DM20 mixer – 20 channels,motorised faders, large touch screen, USB ports – everything you need for perfect live mixing. DM20 is the result of many years of R&D combining Soundking’s experience in signal processing with the latest technologies to give you total control over your sound.
Although ultra compact, DM20 uses the full potential of our digital mixer expertise without compromising any features. All settings can be recalled including, most importantly, the faders – unique in this class of mixer. Full control is also available remotely via Wi-Fi so you are free to mix anywhere in the venue.
There are 12 mic/line inputs, 2 stereo inputs all routable via 16 busses to 8 balanced outputs. Joining them is a host of professional digital interfaces – AES/EBU, SPDiF and two USB.
The 1024x600 touch screen makes navigation simple and intuitive, in fact DM20 can be used straight out of the box without the need to read a100 page manual!
Studio quality sound, multi-effects engines and full dynamics processing make DM20 the easy way to mix your sound.



Features




Features:
> S/pdif in/out & AES/EBU output
> 7" high resolution touch screen or full tablet operation
> Input: 12 MIC(4 COMBO), 2 ST,S/PDIF input,USB input
> Touch screen sliding operation
> 8 FX (2 Modulation,2 Delay,2 Reverb,2 GEQ)
> BUS: L/R +4MONO+4ST+1Monitor
> High quality components:NEUTRIK XLR,ALPS faders
> 2 USB(recording/playback,WiFi)
> iPad remote control
> Electro-gain of 12 MIC
> 2.1 output

Specification



    Easy Operation Perfect Tone

> One key crossover; set up 2.1 system quickly
> Save the time of mixing and installation
> Easy operation even for anyone who has no tuning experience





Digital-gain of 12 MIC

> Wide dynamic; accurate adjustment 0.5dB; more flexible operation than traditional way of the analogue gain (remote control gain)
> Without the need of panel space; concise panel
> Low noise



High Quality Configuration

8 FX
2 Modulation,2 Delay,2 Reverb,2 GEQ
BUS
L/R +4MONO+4ST+1Monitor
Input
12 MIC(4 COMBO), 2 ST, S/PDIF input, USB input
S/PDIF in/out & AES/EBU output


Built-in Media Player & Recorder


2 USB(recording/playback,WiFi)
> Built in media player and recorder, or use your favourite android app
> Playback from either USB(external module) or internal source
> Record from any smart output

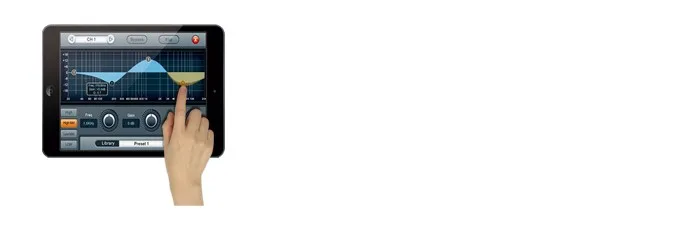

iPad Remote Control



> Control DM20 via iPad APP, including gain / EQ / dynamic / fader, etc.
> Perfectly control DM20 via WiFi using built-in AP or external router.
